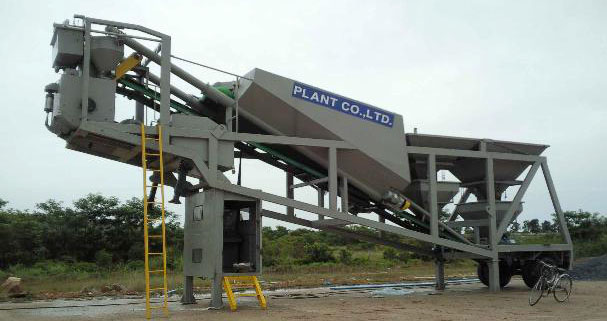

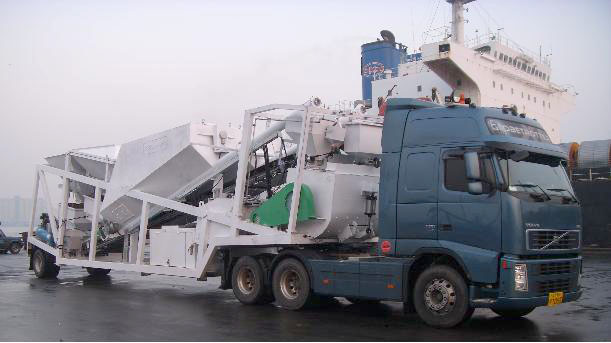

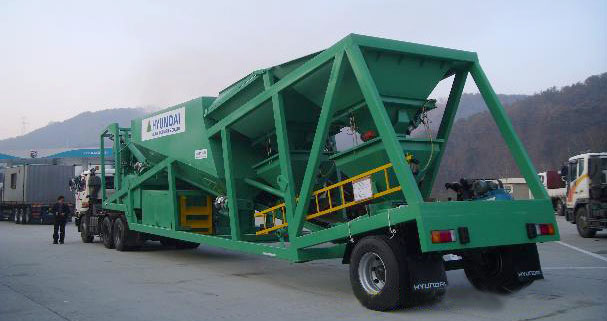

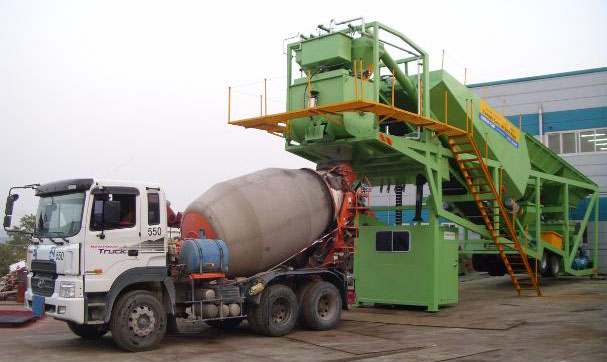

| 금강플랜트 이동식 콘크리트 배차 플랜트는 트레일러 타입으로 설계 제작되어 이동 설치가 간편하고 고정식과 성능이 동일 합니다. |
 |
 |
 |
 |
| Model |
K2-30 (30M³/h) |
| No |
Description |
Size or Weight |
| 01 |
Mixer Capacity |
0.5M³ / Batch |
| 02 |
Mixer Motor |
30HP × 4P × 1:30 |
| 03 |
Mixer Blade Tip |
Hi Mn Steel |
| 04 |
Sand, Gravel Supply Hopper |
3m³ |
| 05 |
Cement Hopper |
18Ton |
| 06 |
Supply Hopper Vibrator |
1/4HP |
| 07 |
Sand Scale Hopper |
0 - 1000kg |
| 08 |
Gravel Scale Hopper |
0 - 1000kg |
| 09 |
Cement Scale Hopper |
0 - 200kg |
| 10 |
Water Scale Hopper |
0 - 100kg |
| 11 |
Plasticizer Scale Hopper |
0 - 10kg |
| 12 |
Conveyor Belt (Sand&Gravel) |
W500mm × L9m |
| 13 |
Cement Screw Conveyor |
Ø200 × L7m |
| 14 |
Air Compressor |
5HP |
| 15 |
Conveyor Belt Motor |
5HP × 4P |
| 16 |
Size of Body |
W:3,000/L:13,000/H:4,200 |
| 17 |
Electric Power |
Ø3 380V 50HZ / 45Kw |
| 18 |
Cement Silo(Option) |
75ton/Rotary Valve/Bag Filter |
|
| ※ 제품의 개선을 위하여 위의 사양은 변경될 수 있습니다. |
 |
 |
 |
| Model |
K2-60 (60M³/h) |
| No |
Description |
Size or Weight |
| 01 |
Mixer Capacity |
1.0m³ / Batch |
| 02 |
Mixer Motor |
60HP × 4P × 1:30 |
| 03 |
Mixer Blade Tip |
Hi Mn Steel |
| 04 |
Sand, Gravel Supply Hopper |
5m³ |
| 05 |
Cement Hopper |
20Ton |
| 06 |
Supply Hopper Vibrator |
1/4HP |
| 07 |
Sand Scale Hopper |
0 - 1500kg |
| 08 |
Gravel Scale Hopper |
0 - 1500kg |
| 09 |
Cement Scale Hopper |
0 - 300kg |
| 10 |
Water Scale Hopper |
0 - 200kg |
| 11 |
Plasticizer Scale Hopper |
0 - 20kg |
| 12 |
Conveyor Belt (Sand&Gravel) |
W700mm × L10m |
| 13 |
Cement Screw Conveyor |
Ø250 × L9m |
| 14 |
Air Compressor |
7.5HP |
| 15 |
Conveyor Belt Motor |
10HP × 4P |
| 16 |
Size of Body |
W:3,000/L:13,000/H:4,200 |
| 17 |
Electric Power |
Ø3 380V 50HZ / 60Kw |
| 18 |
Cement Silo(Option) |
75ton/Rotary Valve/Bag Filter |
|
| ※ 제품의 개선을 위하여 위의 사양은 변경될 수 있습니다. |
 |
 |
 |

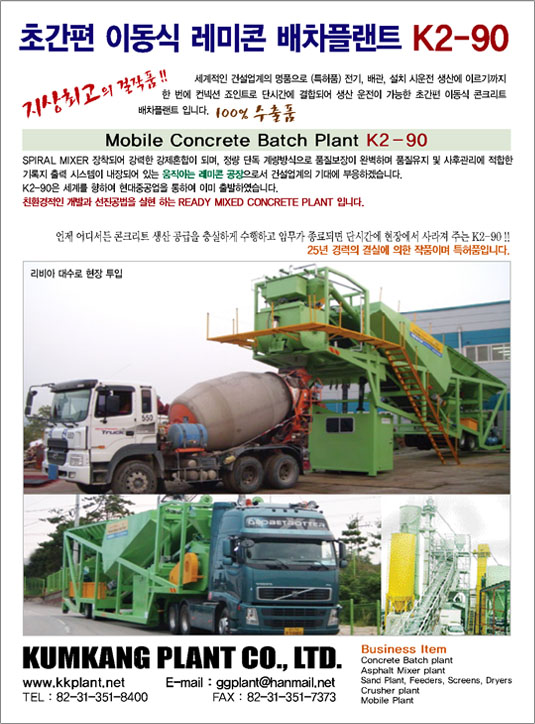

| Model |
K2-90 (90M³/h) |
| No |
Description |
Size or Weight |
| 01 |
Mixer Capacity |
1.5M³ / Batch |
| 02 |
Mixer Motor |
75HP × 4P × 1:30 |
| 03 |
Mixer Blade Tip |
Hi Mn Steel |
| 04 |
Sand, Gravel Supply Hopper |
10m³ |
| 05 |
Cement Hopper |
20Ton |
| 06 |
Supply Hopper Vibrator |
1/2HP |
| 07 |
Sand Scale Hopper |
0 - 2000kg |
| 08 |
Gravel Scale Hopper |
0 - 2000kg |
| 09 |
Cement Scale Hopper |
0 - 500kg |
| 10 |
Water Scale Hopper |
0 - 300kg |
| 11 |
Plasticizer Scale Hopper |
0 - 20kg |
| 12 |
Conveyor Belt (Sand&Gravel) |
W800mm × L12m |
| 13 |
Cement Screw Conveyor |
Ø250 × L9m |
| 14 |
Air Compressor |
10HP |
| 15 |
Conveyor Belt Motor |
10HP × 4P |
| 16 |
Size of Body |
W:3,000/L:16,000/H:4,400 |
| 17 |
Electric Power |
Ø3 380V 50HZ / 95Kw |
| 18 |
Cement Silo(Option) |
75ton/Rotary Valve/Bag Filter |
|
| ※ 제품의 개선을 위하여 위의 사양은 변경될 수 있습니다. |
 |
 |
 |
| Model |
K2-120 (120M³/h) |
| No |
Description |
Size or Weight |
| 01 |
Mixer Capacity |
2.0M³ / Batch |
| 02 |
Mixer Motor |
100HP × 4P × 1:30 |
| 03 |
Mixer Blade Tip |
Hi Mn Steel |
| 04 |
Sand, Gravel Supply Hopper |
15m³ |
| 05 |
Cement Hopper |
20Ton |
| 06 |
Supply Hopper Vibrator |
1/2HP |
| 07 |
Sand Scale Hopper |
0 - 2000kg |
| 08 |
Gravel Scale Hopper |
0 - 2000kg |
| 09 |
Cement Scale Hopper |
0 - 600kg |
| 10 |
Water Scale Hopper |
0 - 400kg |
| 11 |
Plasticizer Scale Hopper |
0 - 20kg |
| 12 |
Conveyor Belt (Sand&Gravel) |
W800mm×L13.5m |
| 13 |
Cement Screw Conveyor |
Ø250 × L10m |
| 14 |
Air Compressor |
10HP |
| 15 |
Conveyor Belt Motor |
15HP × 4P |
| 16 |
Size of Body |
W:3,200/L:17,500/H:4,400 |
| 17 |
Electric Power |
Ø3 380V 50HZ / 120Kw |
| 18 |
Cement Silo(Option) |
75ton/Rotary Valve/Bag Filter |
|
| ※ 제품의 개선을 위하여 위의 사양은 변경될 수 있습니다. |
| |
